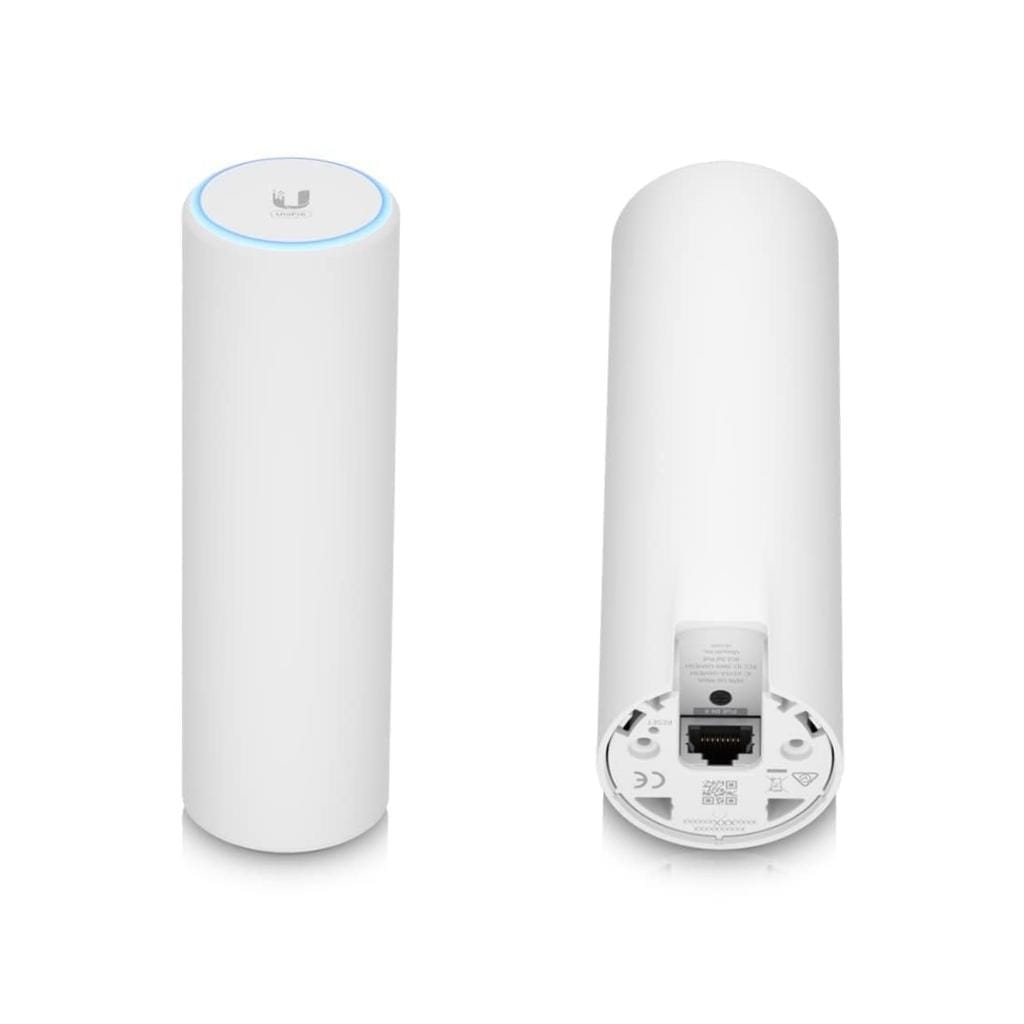

Ubiquiti UniFi U6 Mesh WiFi 6 Access Point

Ubiquiti UniFi U6 Mesh WiFi 6 Access Point

The Ubiquiti UniFi U6 Mesh Access Point is a high-performance WiFi 6 (802.11ax) device designed for seamless connectivity across both indoor and outdoor environments. Featuring advanced technologies like 4×4 MU-MIMO on the 5 GHz band and 2×2 MIMO on the 2.4 GHz band, it offers a combined throughput of up to 5.3 Gbps. The U6 Mesh is ideal for mesh networking applications, providing extended coverage and reliable WiFi performance in both residential and enterprise networks. Its IPX5-rated waterproof housing makes it versatile for all types of installations, ensuring maximum coverage and flexibility. With easy plug-and-play setup, this access point integrates quickly with the UniFi Network Controller for easy management.

Features:

WiFi 6 (802.11ax) Technology: Ensures faster speeds, higher capacity, and greater efficiency for more connected devices.

Up to 5.3 Gbps Throughput: Achieves maximum throughput by utilizing 4×4 MU-MIMO on the 5 GHz band and 2×2 MIMO on the 2.4 GHz band.

OFDMA and MU-MIMO: Advanced technologies that improve network performance by efficiently managing data and reducing latency.

IPX5-rated Waterproof Housing: Suitable for both indoor and outdoor deployments with rugged, weather-resistant design.

Flexible Mounting Options: Includes wall, desktop, and pole mounts for versatile installation.

Plug-and-Play Setup: Easy installation with minimal effort using the UniFi Network Controller.

Seamless Coverage and Mesh Networking: Ideal for expanding WiFi coverage with mesh networking in large areas.

Managed via UniFi Network App: Easily manage your network through the web or mobile UniFi Network app for real-time monitoring and control.

Specifications:

Wireless:

WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)

Max Aggregate Throughput: 5.3 Gbps

Channel Bandwidth:

2.4 GHz: 20/40 MHz

5 GHz: 20/40/80/160 MHz

Operating Frequencies:

2.4 GHz: 2400–2472 MHz (US/CA)

5 GHz: 5150–5850 MHz (US/CA)

2.4 GHz: 2400–2483.5 MHz (Worldwide)

5 GHz: 5150–5725 MHz (Worldwide)

Networking Interface:

Ports: (1) Gigabit Ethernet (RJ45)

Power:

Max Power Consumption: 13W

PoE Support: 48V, 0.32A PoE Adapter Included

Supported Voltage Range: 44–57V DC

Environmental:

Operating Temperature: -30 to 60°C (-22 to 140°F)

Operating Humidity: 5% to 95% non-condensing

Weatherproof Rating: IPX5-rated

Certifications:

CE, FCC, IC

NDAA Compliant

Physical:

Weight: 400 g (14.1 oz)

Enclosure Material: Polycarbonate, Aluminum

Mounting Material: Polycarbonate

Software:

UniFi Network Controller Version 6.0.45 or later required

What’s in the Box

1 x Ubiquiti UniFi U6 Mesh Access Point (WiFi 6)

1 x 48V, 0.32A PoE Adapter

1 x Wall Mount

1 x Desktop Mount

1 x Pole Mount

Coverage :

Indoor Coverage: Up to 93 to 139 square meters.

Outdoor Coverage: Up to 139 to 186 square meters.

These can vary based on factors like the layout, obstructions, and environmental conditions.
