Ubiquiti NanoStation M2 – Wireless Access Point – AirMax (NSM2US)

Ubiquiti NanoStation M2 – Wireless Access Point – AirMax (NSM2US)

The Ubiquiti NanoStation M2 (NSM2) is a high-performance 2.4GHz wireless access point designed for both indoor and outdoor use. Featuring Ubiquiti’s AirMax technology, it supports up to 150 Mbps throughput and provides excellent performance over a range of up to 13 kilometers. Its sleek design and easy installation make it perfect for point-to-multipoint (PtMP) applications. With its dual-polarity 11dBi antenna and support for Power over Ethernet (PoE), the NSM2 is ideal for wireless networking, remote video monitoring, and other demanding applications.

Features:

AirMax Technology: Utilizes TDMA (Time Division Multiple Access) protocol for efficient and high-performance wireless communication.

Long-Range Connectivity: Offers coverage up to 13 kilometers with excellent performance.

Dual-Polarity Antenna: Equipped with an 11dBi dual-polarity antenna for enhanced signal quality and noise immunity.

High-Speed Throughput: Capable of up to 150 Mbps data transfer rate, ideal for high-demand applications.

Easy Installation: Simple to install with Power over Ethernet (PoE) support and a secondary Ethernet port for additional connectivity options.

Remote Hardware Reset: Allows remote resetting from the power supply location.

Compact Design: Small form factor for easy mounting in various environments.

AirOS V: Latest AirOS version provides advanced wireless configurations and routing functionality.

Specifications:

Frequency Band: 2.4 GHz

Data Transfer Rate: 150 Mbps

Range: Up to 13 kilometers (line of sight)

Antenna: 11dBi dual-polarity antenna

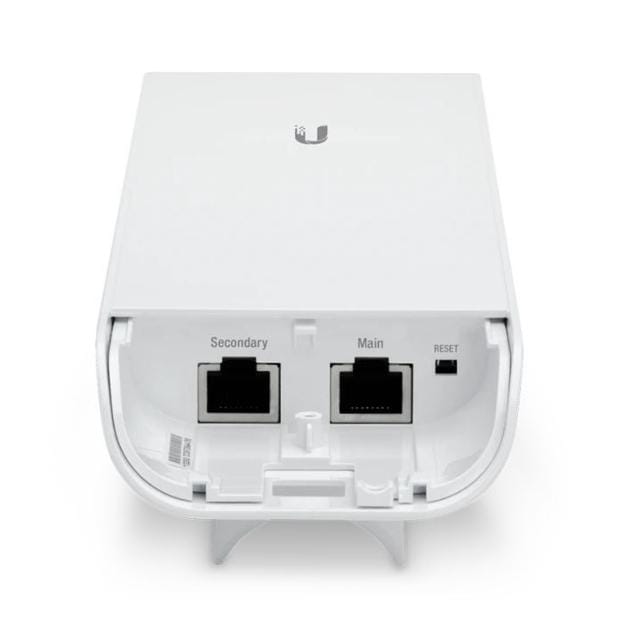

Ethernet Ports: 2 (1 for connectivity, 1 for PoE output)

Power: PoE Supported (24V)

Operating System: AirOS V

Dimensions: 6″L x 7″W x 5″H (15.2 x 17.8 x 12.7 cm)

Weight: 0.5 kg (1.1 lbs)

Control Method: App-based management

Voltage: 24 Volts

Additional Features:

Remote hardware reset

Dual-polarity antenna for enhanced signal

Compatible with Ubiquiti’s Instant 802.3af adapter for 48V PoE compliance

What’s in the Box:

Ubiquiti NanoStation M2 (NSM2)

PoE Adapter

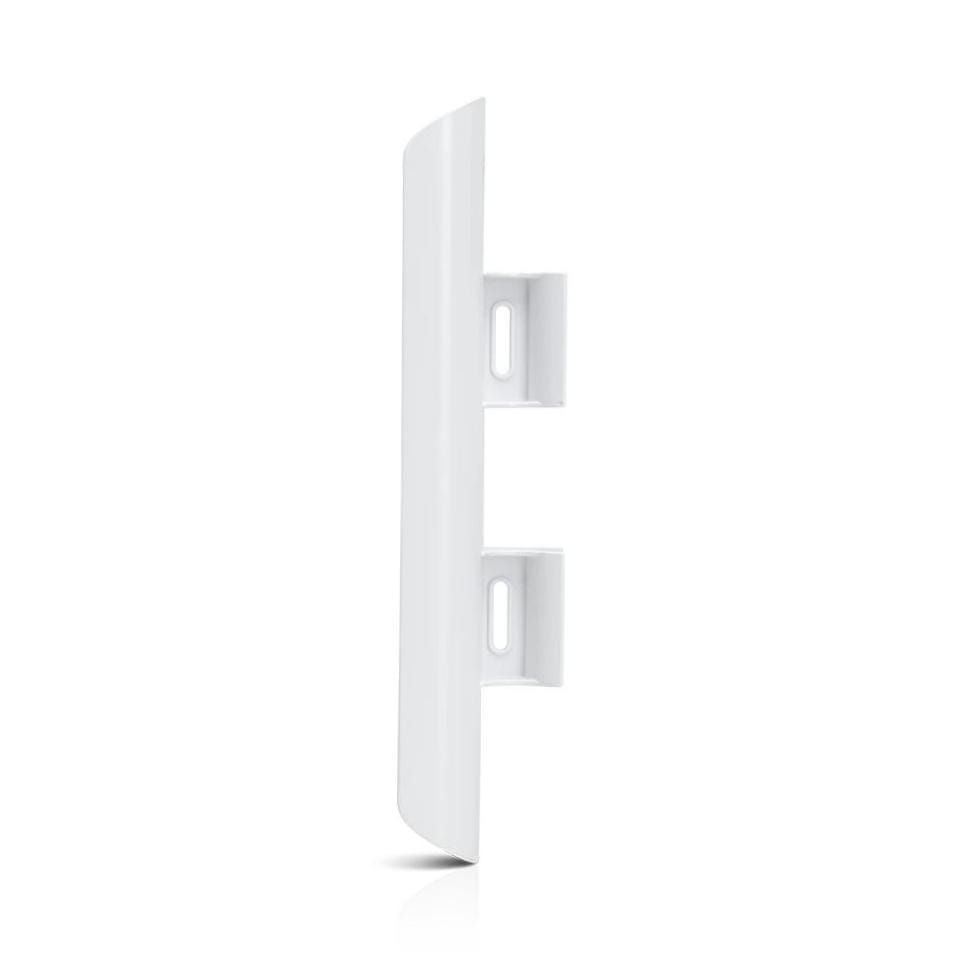

Mounting Kit

Quick Start Guide

The Ubiquiti NanoStation M2 (NSM2) offers a coverage range of up to 13 kilometers (approximately 8 miles) with a clear line of sight. This range is achieved using its 2.4 GHz frequency band and 11dBi dual-polarity antenna, making it ideal for long-distance wireless communication in point-to-multipoint (PtMP) applications. However, the actual range may be affected by environmental factors like terrain, interference, and obstacles.

This wireless access point is perfect for users who need reliable, long-range connectivity for various applications such as video surveillance, point-to-multipoint networking, and wireless backhaul connections.
