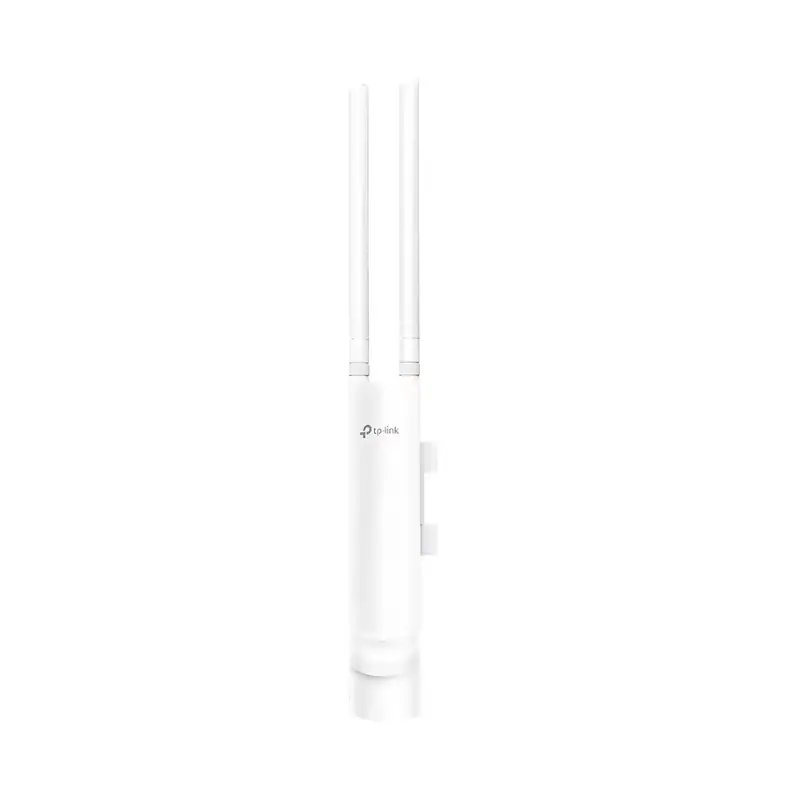

TP-Link EAP225 AC1200 Gigabit Outdoor WiFi Access Point

TP-Link EAP225 AC1200 Gigabit Outdoor WiFi Access Point – Mesh, Dual Band, Omada Cloud Managed, Weatherproof

Stay connected everywhere with the TP-Link EAP225 AC1200 Outdoor Access Point, designed for long-range WiFi coverage indoors and outdoors. With dual-band Gigabit WiFi, MU-MIMO technology, and Mesh support, this device ensures stable, high-speed connections for multiple devices simultaneously. The IP65 weatherproof enclosure makes it perfect for outdoor use, while Omada Cloud Management lets you control your network from anywhere via the Omada app. Whether for home, business, or outdoor hotspots, this access point delivers professional-grade performance with effortless setup using PoE power supply.

Key Features

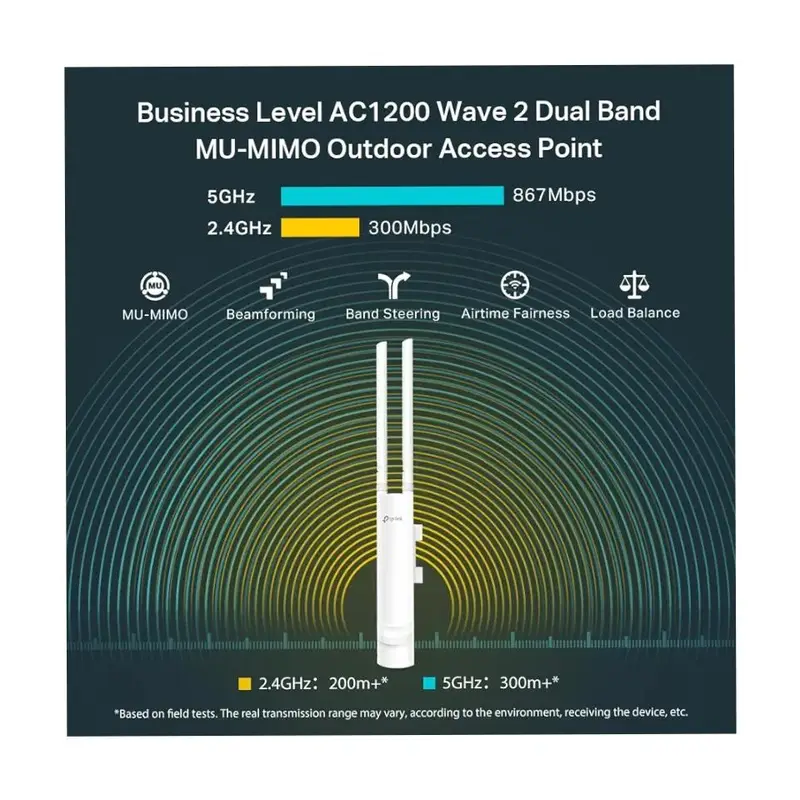

AC1200 Dual-Band Speeds – Up to 1200Mbps with 2×2 MIMO technology.

Long-Range Coverage – 200m+ (2.4GHz) and 300m+ (5GHz) in outdoor environments.

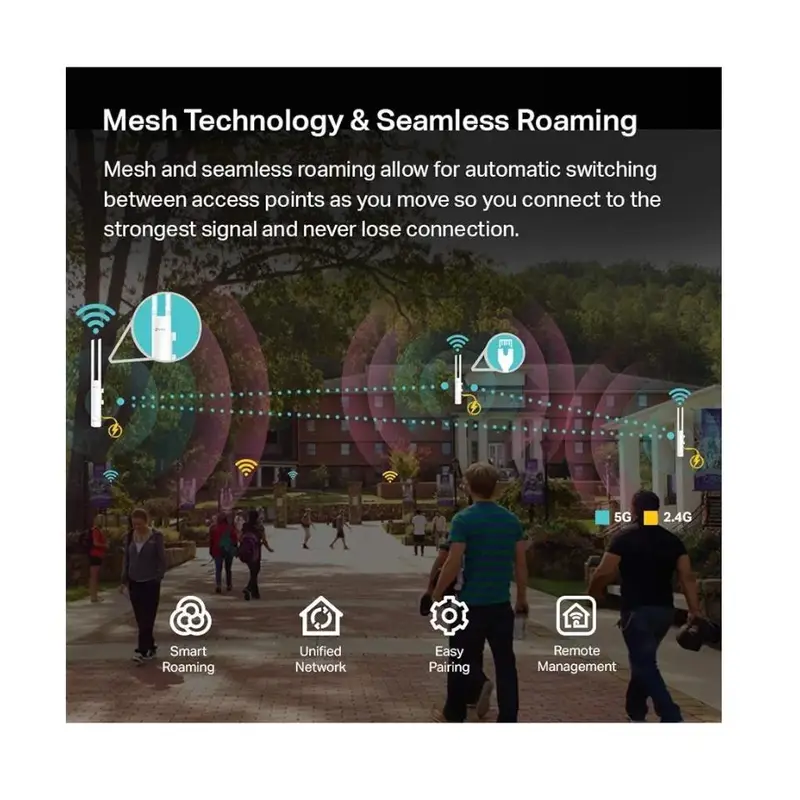

Omada Mesh Technology – Seamlessly extends coverage with other Omada APs.

Omada Cloud Management – Remote management via app or cloud controller.

Secure Guest WiFi – Captive portal with Facebook Wi-Fi & SMS authentication.

Weatherproof IP65 Design – Built to withstand rain, dust, and harsh conditions.

Seamless Roaming – Smooth streaming and VoIP calls while moving.

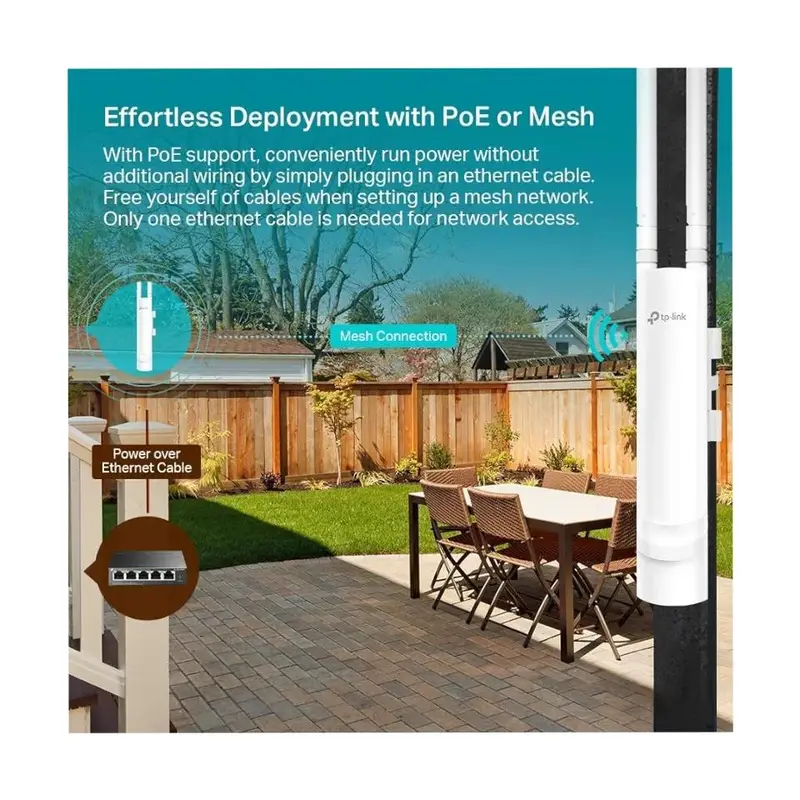

Flexible Installation – Supports 802.3af/at PoE & Passive PoE (adapter included).

Specifications

Brand/Model: TP-Link EAP225-Outdoor

WiFi Standard: 802.11ac Wave 2, MU-MIMO

Frequency Bands: Dual-band (2.4GHz + 5GHz)

Max Speed: 1200Mbps (300Mbps on 2.4GHz + 867Mbps on 5GHz)

Range: 200m+ (2.4GHz), 300m+ (5GHz)

Antenna: High-gain detachable antennas

Security: WPA2-PSK, Captive Portal, Facebook & SMS login

Management: Omada SDN (Cloud/Software/Hardware controller) or Standalone

Power Options: 802.3af/at PoE or Passive PoE (adapter included)

Enclosure Rating: IP65 Weatherproof

LAN Port: 1× Gigabit Ethernet (10/100/1000 Mbps)

Operating Temp: -30–70°C

Dimensions: 8.46 × 1.81 × 1.05 inches

Weight: 0.37 lbs (167g)

Coverage Range

2.4 GHz band → up to 200+ meters in open outdoor environments.

5 GHz band → up to 300+ meters in open outdoor environments.

These are ideal, line-of-sight conditions (no walls, trees, or interference).
In real-world use (like around buildings, vegetation, or heavy Wi-Fi congestion), expect 50–150 m practical coverage depending on obstacles and device sensitivity.

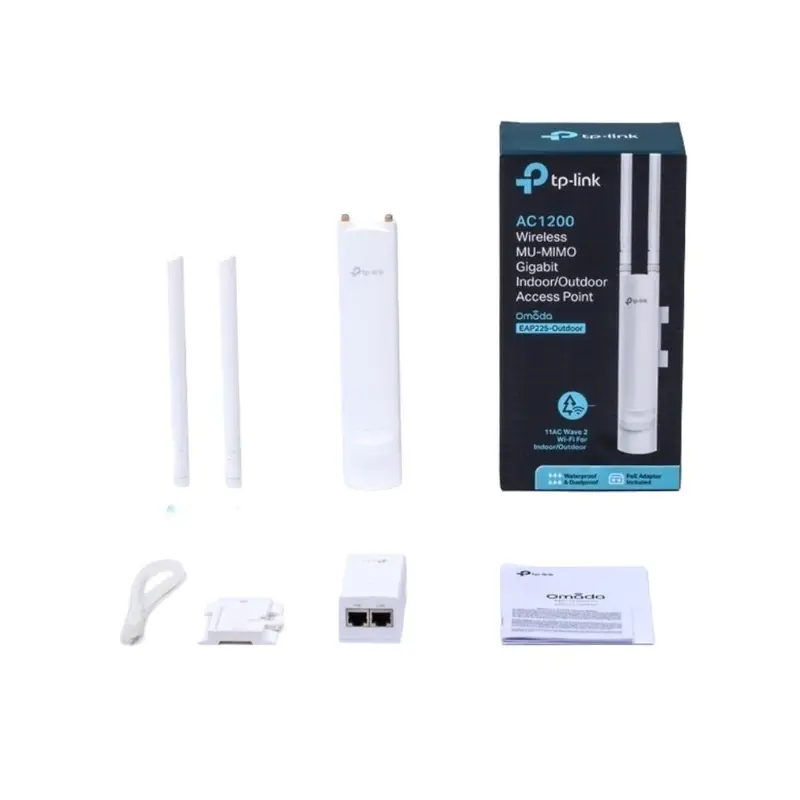

What’s in the Box

1× TP-Link EAP225 AC1200 Outdoor Access Point

1× Passive PoE Adapter & Power Cord

2× Detachable Antennas

Mounting Kits

Installation Guide
