Ruijie Reyee RG-RAP6262 Outdoor Wi-Fi 6 Access Point | AX3000 | IP68 Rated | Fiber Uplink

Ruijie Reyee RG-RAP6262 Outdoor Wi-Fi 6 Access Point | AX3000 | IP68 Rated | Fiber Uplink

The Ruijie Reyee RG-RAP6262 is a professional-grade outdoor Wi-Fi 6 access point built for high-performance, wide-area wireless coverage. Delivering up to 2976 Mbps, it supports hundreds of users simultaneously while withstanding tough outdoor environments thanks to its IP68-rated enclosure. Equipped with a fiber uplink (SFP port) and Ruijie’s free Cloud management, the RG-RAP6262 is perfect for large campuses, farms, resorts, parks, and public hotspots requiring reliable, high-capacity wireless networking.

Key Features:

High-speed Wi-Fi 6 (802.11ax) technology for faster, more efficient connections.

AX3000 dual-band performance: up to 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz.

Rugged IP68-rated weatherproof housing for reliable outdoor operation.

Built-in high-gain omnidirectional antennas for extended coverage (up to 300 meters).

Supports both Gigabit Ethernet (RJ45) and Fiber SFP uplink connections.

Powered via 802.3at PoE or optional 12V DC input.

Connects up to 512 clients (ideal performance with around 110 users).

Easy remote setup and management via Ruijie Cloud – free with no subscription fees.

Supports Reyee Mesh technology for seamless Wi-Fi extension.

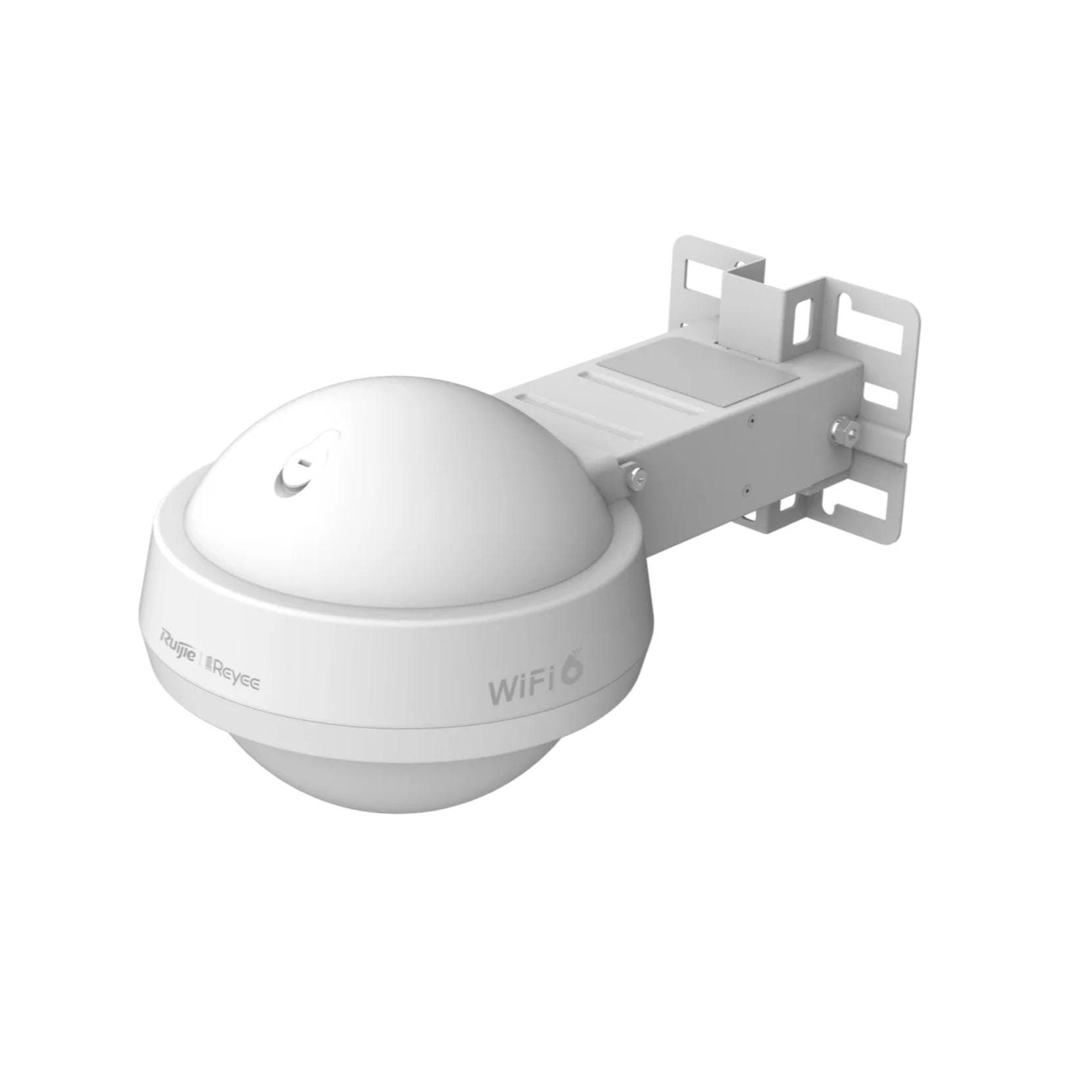

Suitable for pole or wall mounting; accessories included.

Specifications:

Wireless Standard: Wi-Fi 6 (802.11ax)

Frequency Bands: Dual-band 2.4GHz and 5GHz

Maximum Wireless Speed: 2976 Mbps combined

MIMO Technology: 2×2 MIMO on both bands

Coverage: Approx. 100 meters (2.4GHz) and 300 meters (5GHz) under ideal conditions

Ethernet Ports: 1 × Gigabit Ethernet (RJ45)

Fiber Uplink: 1 × 1G SFP port for fiber optic connection

Power Options: 802.3at PoE or 12V DC input

Maximum Power Consumption: 24 Watts

Operating Temperature Range: -30°C to +65°C

Protection Rating: IP68 (dustproof, waterproof)

Dimensions: 230 × 230 × 195 mm

Weight: 1.4 kilograms

Management Method: Ruijie Cloud Platform (free), or local web interface

Maximum Clients Supported: 512

Coverage is approximately:

Up to 100 meters on the 2.4GHz band

Up to 300 meters on the 5GHz band

(in open-space, ideal conditions with no major obstacles)

Important notes on Coverage:

2.4GHz travels farther but offers lower speed.

5GHz offers faster speed but shorter range compared to 2.4GHz.

In real-world environments (trees, walls, rain, etc.), actual distance can be reduced by 20–40% depending on obstructions.

For maximum performance outdoors, the AP should be mounted high up (at least 3–6 meters above ground) and in clear line-of-sight.
