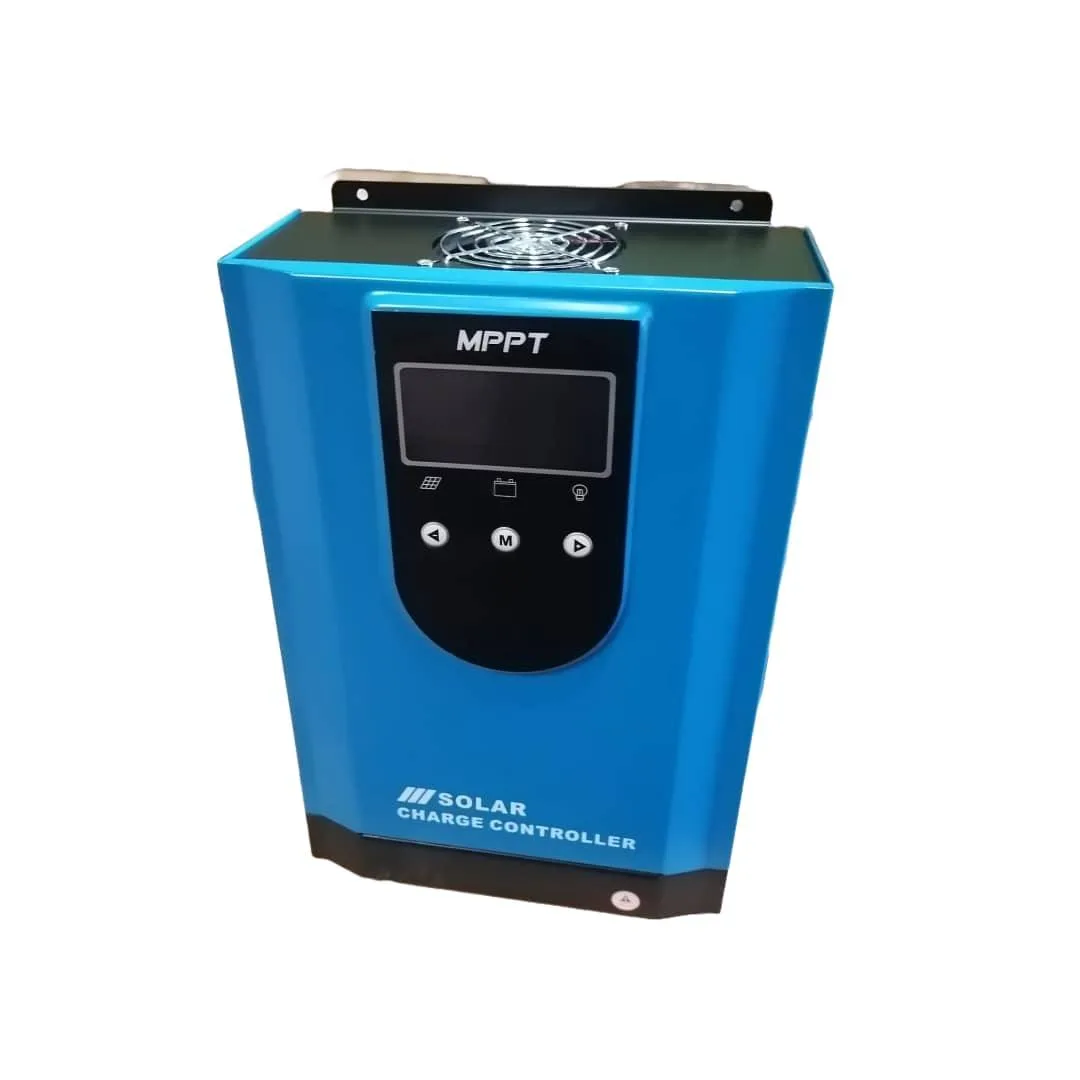

LC Star 80A MPPT Solar Charge Controller

LC Star 80A Solar Charge MPPT Controller

Voltage: 48 Volts (DC)
Material: Copper
Display Type: LCD

Our well-designed 80A solar charge controller is equipped with an LCD display and simple button design, expanding the configuration space and allowing you to monitor the operation data and system status in real time. Supports 4-stage battery charging algorithm for a rapid, efficient , safe charging (Bulk Charge, Boost Charge, Float Charge, and Equalization).
PV Input Parameters: Max.PV input open circuit voltage:160V.When the system voltage is 12V, the Max.input power is 960W.When the system voltage is 24V, the Max.input power is 1920W.When the system voltage is 36V, the Max.input power is 2880W.When the system voltage is 48V, the Max.input power is 3840W.
Compatible Battery Types: The 80 amp solar controller is compatible with various lithium-ion and lead-acid batteries such as SEL, USE, FLD, GEL, LiFePO4, and ternary lithium batteries. Supports 12V/24V/36V/48V batteries options, allows for user-defined batteries, easy battery selection, and battery voltage calibration.
Safety Protection: with battery over-discharge, over-voltage, PV input over-current, short circuit and other safety protection. In terms of heat dissipation, the built-in cooling fan is forced to dissipate heat, and the external aluminum alloy cooling back plate dissipates heat to enhance the overall operating efficiency of the device.
Supports up to 12 units in parallel: The parallel function can easily expand the number of solar panels and the upper limit of energy storage battery capacity, thereby increasing the scale of energy storage. Please note: Parallel controllers need to be connected to the same battery pack!
