LC-STAR 5000w/5kWh 24V 200Ah LiFePO4 Lithium Battery – Wall-Mount Solar Energy Storage

LC-STAR 5kWh 24V 200Ah LiFePO4 Lithium Battery – Wall-Mount Solar Energy Storage with Smart BMS

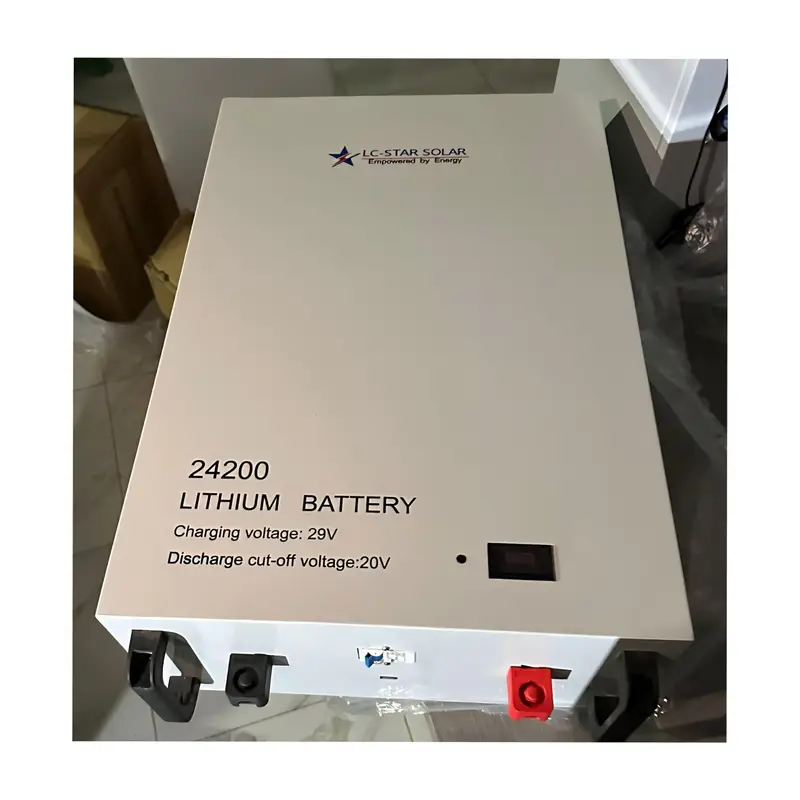

This is a wall-mounted lithium-ion battery with a 5kWh capacity and 24V output from LC-STAR SOLAR, designed for solar energy storage. It has a charging voltage of 29.5V and a discharge cut-off voltage of 20V. The battery appears to be part of a solar energy system, as indicated by the branding and context.

The LC-STAR 24V 200Ah Lithium Battery is a powerful LiFePO4 energy storage unit tailored for inverters, off-grid setups, and backup power. It delivers excellent performance, a long cycle life, and integrated protection via its Smart Battery Management System (BMS). Built to be mounted on walls or racks, it’s perfect for homes, offices, and mobile energy systems.

Key Features:

Battery Type: LiFePO4 (Lithium Iron Phosphate)

Form Factor: Wall-mountable lithium-ion battery

Nominal Voltage: 24V

Rated Capacity: 200Ah

Total Energy: 5kWh (5000Wh)

Charging Voltage: 29.5V

Discharge Cut-Off Voltage: 20V

Integrated Smart BMS: Yes

Cycle Life: 3000+ cycles (at 80% DoD)

Label Warning: Avoid squeezing and high heat

Benefits:

Wall-mounted form for easy installation

High 5kWh capacity for long runtime

Built-in Smart BMS for safety and balance

Maintenance-free and eco-friendly operation

Stable voltage for solar inverters and appliances

Scalable system design — stack or expand as needed

Operates reliably in extreme temperatures

Specifications:

Brand: LC-STAR SOLAR

Model: 24V200Ah-LFP

Battery Chemistry: LiFePO4

Nominal Voltage: 24V

Capacity: 200Ah

Energy Storage: 5000Wh (5kWh)

Charging Voltage: 29.5V

Discharge Cut-Off: 20V

Cycle Life: 3000+ cycles (@80% DoD)

Smart BMS: Integrated

Weight: Approx. 40–50kg

Operating Temperature: -20°C to +60°C

Mounting Options: Wall-mounted, rack, or stackable

Applications:

Solar power storage (residential & commercial)

Wall-mounted battery backup systems

Inverter and UPS integration

Off-grid and hybrid solar systems

RVs, boats, telecoms, and emergency setups
