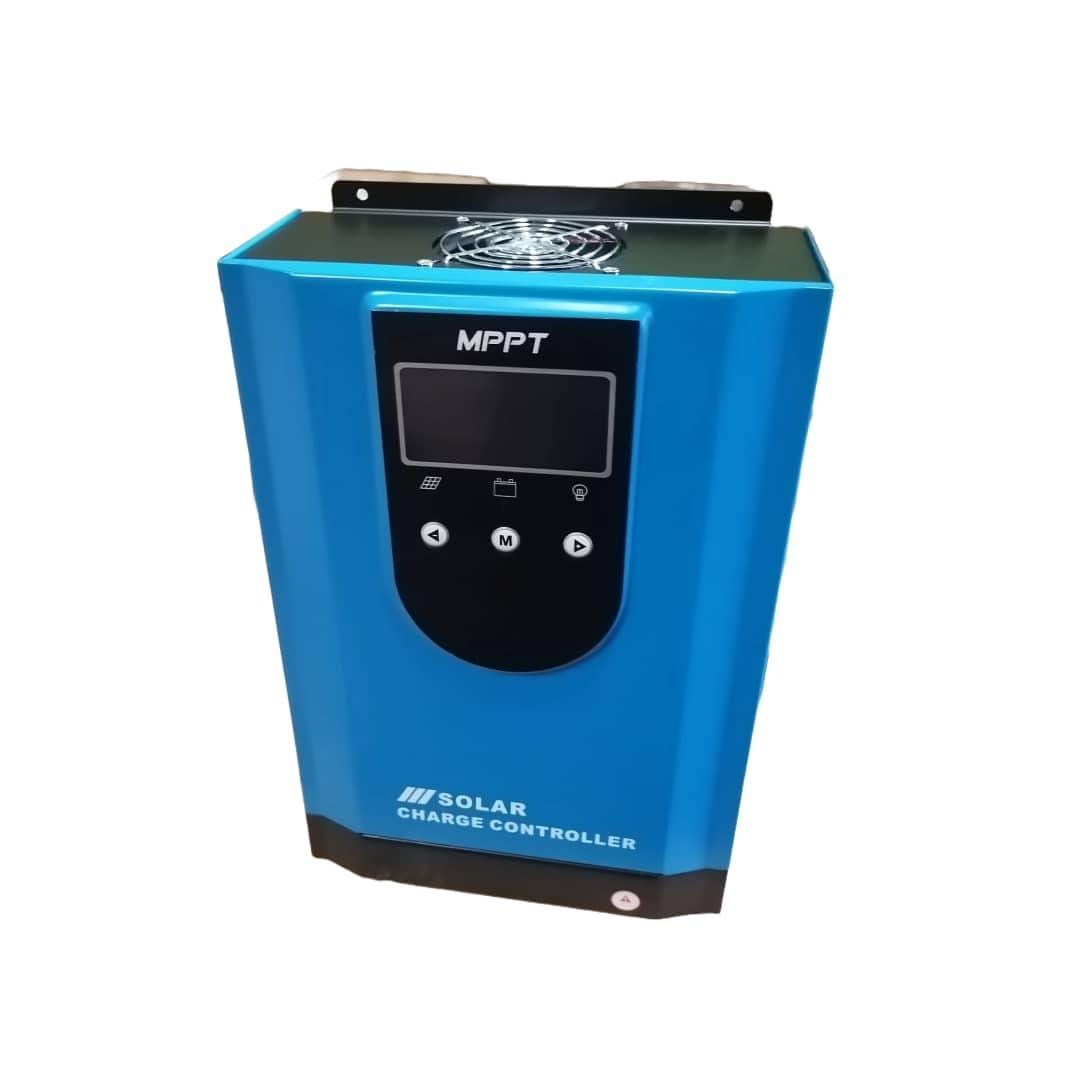

LC Star 100A MPPT Solar Charge Controller

LC Star 100A MPPT Solar Charge Controller

100A 48V Fit for solar Panel: 1300W(12V);2600W(24V);3800W(36V);5000W(48V);Max input Voltage:150V PV;MPPT best working voltage range:DC18V-DC96V(12V);DC36V-DC112V(24V);DC72V-DC150V(48V)
Fit for 12V/24V/36V/48V battery, USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Flooded/Sealed/Gel battery, User programmable for absorption voltage/Floating voltage/Low voltage disconnect.Load Timer.
Multiple protection against overcharge, over discharge, over load, short circuit, reverse polarity, over heat and battery under voltage
Built-in cooling fan, Fan will turn ON when temperature >45℃ and off < 40℃,Porous heat dissipation and fan use BEARING technologies increase life UP TO 5000hrs in normal use. The tracking rate of maximum power is ≥99% and the maximum conversion rate is >98%,can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring, etc.
